Earthstone – 160-PAG-RT – Commercial Gas Fire Rotating Floor Oven

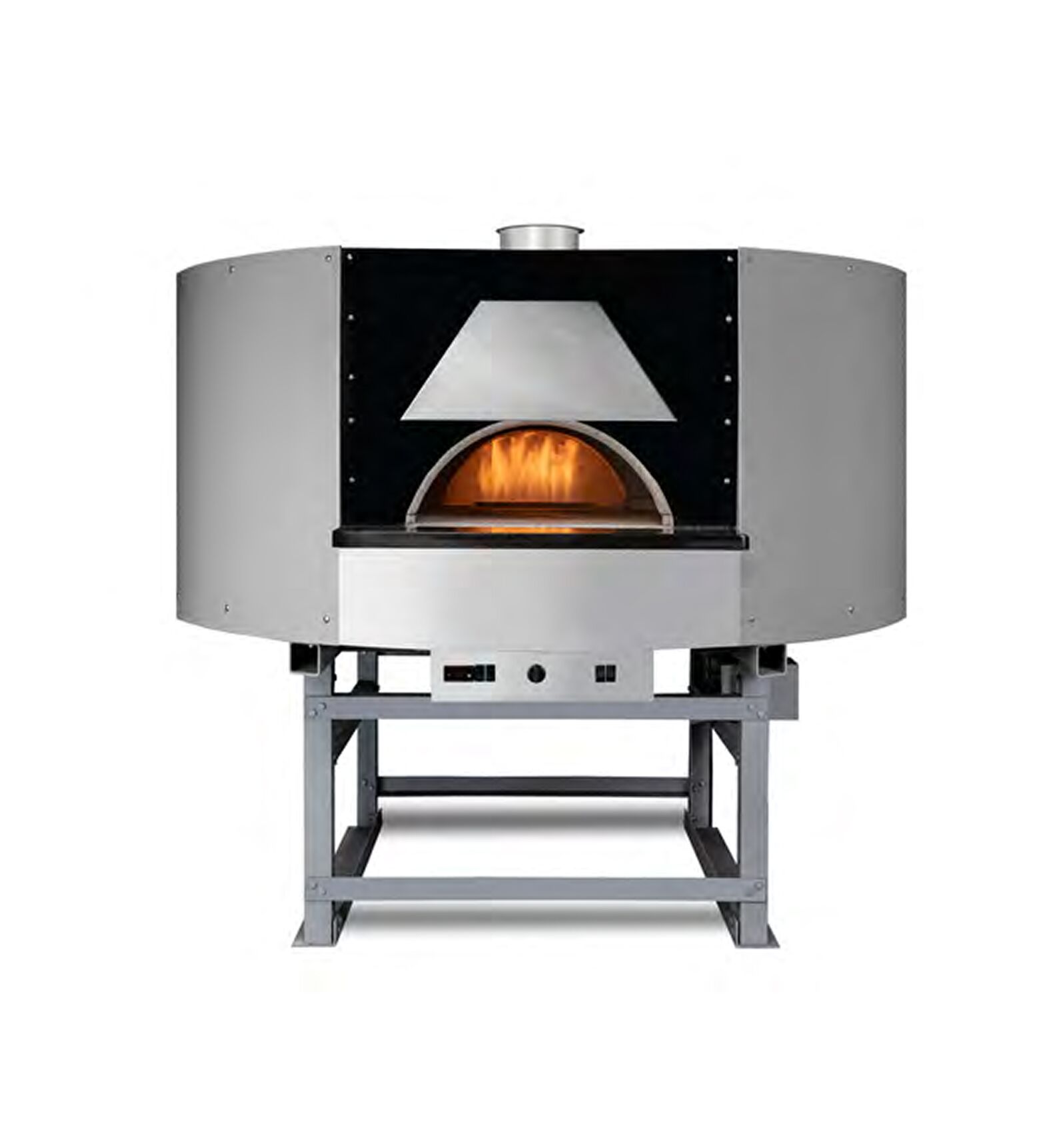

Earthstone Gas Fire Rotating Floor Oven
The Model 160-PAG-RT gas fire rotating oven is designed for high volume and operator simplicity. Features include a 49 inch diameter floor with a 26 inch by 11.50 inch oven entrance. An efficient and highly decorative rear flame provides even baking and illuminates the oven chamber. Operation is a breeze with user friendly controls for both temperature and floor rotation speed. The cast body is 4 to 6 inches thick using a dense high temperature refractory material with 80% alumina content and additional special additives which stop deterioration from acids emitted in the oven. Between the cast body and steel outer enclosure is a hardened lightweight insulation mixture (4 to 20 inches thick), which forms a secondary molded body. Our thick cast refractory body and outer insulation shell maximizes the thermal mass (heat storage) capacity of the oven which allows for an extremely efficient oven that cooks at even non fluctuating temperatures. The 6 inch thick oven floor is manufactured with advanced refractory materials which provide superior heat retention. Both the body pieces and floor are assembled individually which allows for continuous joints throughout the entire oven. This greatly reduces the possibility of stress cracks due to normal heat expansion and contraction. In addition this allows the ovens to be serviceable which extends their usable life.
