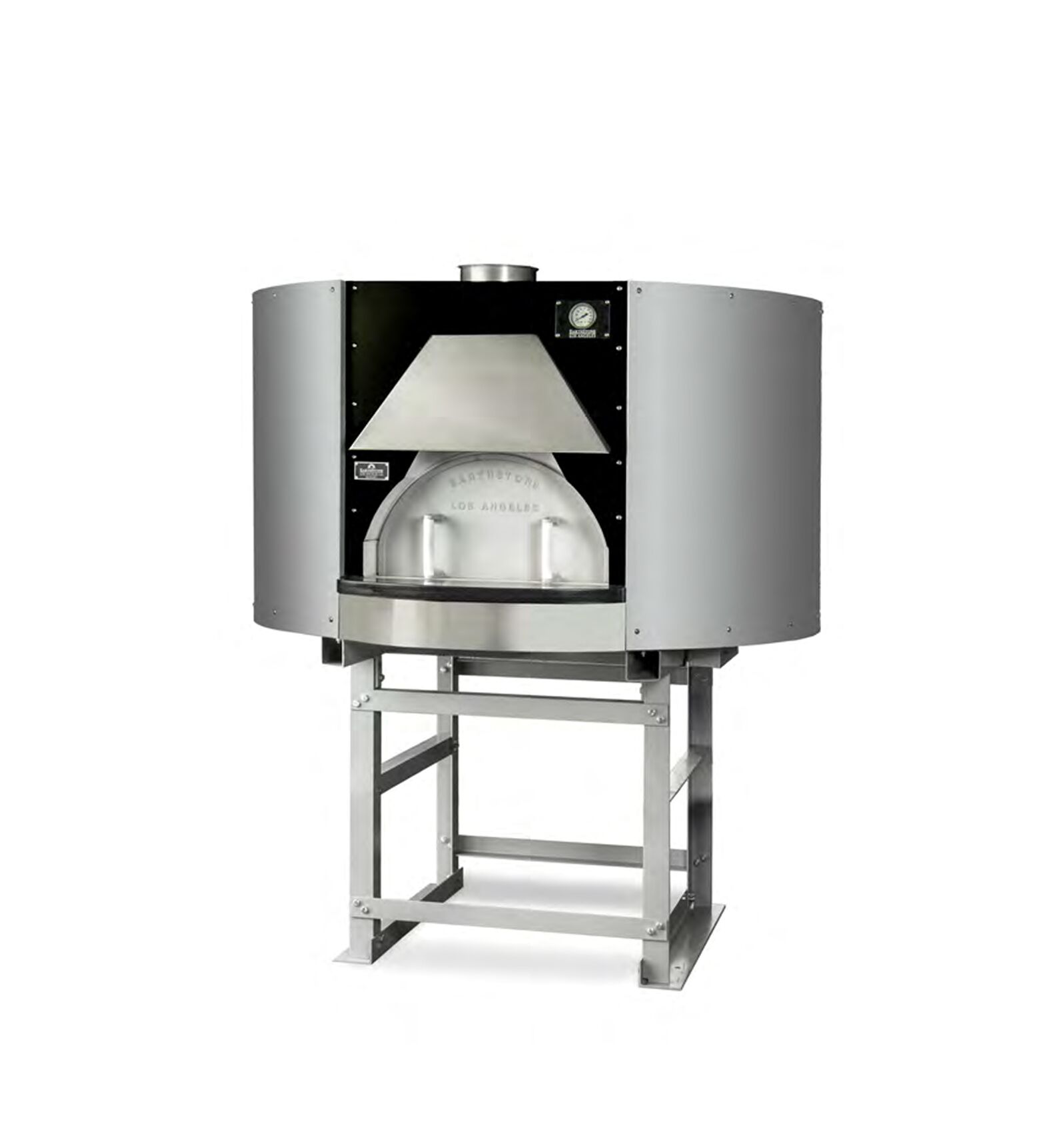

Earthstone – 130-PA, 130-PAG, 130-PAGW – Single Opening

The Model 130-PA(GW) features a 52″ interior cooking diameter with a 26″
wide by 14″ high oven entrance. Cast body is 4 to 6 inches thick using a
dense high temperature refractory material with 80% alumina content and additional special additives which stop deterioration from acids emitted by
wood combustion. Between the cast oven body and steel outer enclosure
is a hardened lightweight insulation mixture (4 to 20 inches thick), which
forms a secondary molded body. Our thick cast refractory body and outer insulation shell maximizes the thermal mass (heat storage) capacity of the
oven which allows for an extremely efficient oven that cooks at even nonfluctuating temperatures.
A temperature probe is placed 3 ½” into the dome of the oven instead of under the cooking floor to avoid temperature readout fluctuations caused by food items.
The hearth floor tiles, “Pierre de Boulanger” (Bakers Tiles), which are used
in industrial bread baking ovens all across Europe, are refractory materialpressed at 8,500 p.s.i. and kiln fired at 2,800 degrees which ceramitizes
the material to create a hard and extremely durable tile. Both the body
pieces and floor tiles are cast and assembled individually which allows for
continuous joints throughout the entire oven. This greatly reduces the
possibility of stress cracks due to normal heat expansion and contraction. In addition this allows the ovens to be serviceable which extends their usable life.
